Home > Fiber Optic Splitter >

1x16 Mini PLC Splitter SC / UPC , Steel Tube Fiber Optic Splitter 0.9mm

Product Categories

Shenzhen damu technology co. LTD

Contact Now

1x16 Mini PLC Splitter SC / UPC , Steel Tube Fiber Optic Splitter 0.9mm

Name: 1x16 Mini PLC Splitter SC UPC Steel Tube Fiber Optic Splitter 09mm
Brand: DAMU or OEM
Price: 1 USD

Quality 1x16 Mini PLC Splitter SC / UPC , Steel Tube Fiber Optic Splitter 0.9mm wholesale

Brand Name : DAMU or OEM

Model Number : PLC 1*16 SCUPC

Place of Origin : CHINA

MOQ : 2PCS

Supply Ability : 20000PCS/DAY

Packaging Details : BLISTER/PLASTIC BAG/CARTON/PALLET

port : 16

APPLICATION : FTTX, Telecom

COLOR : WHITE

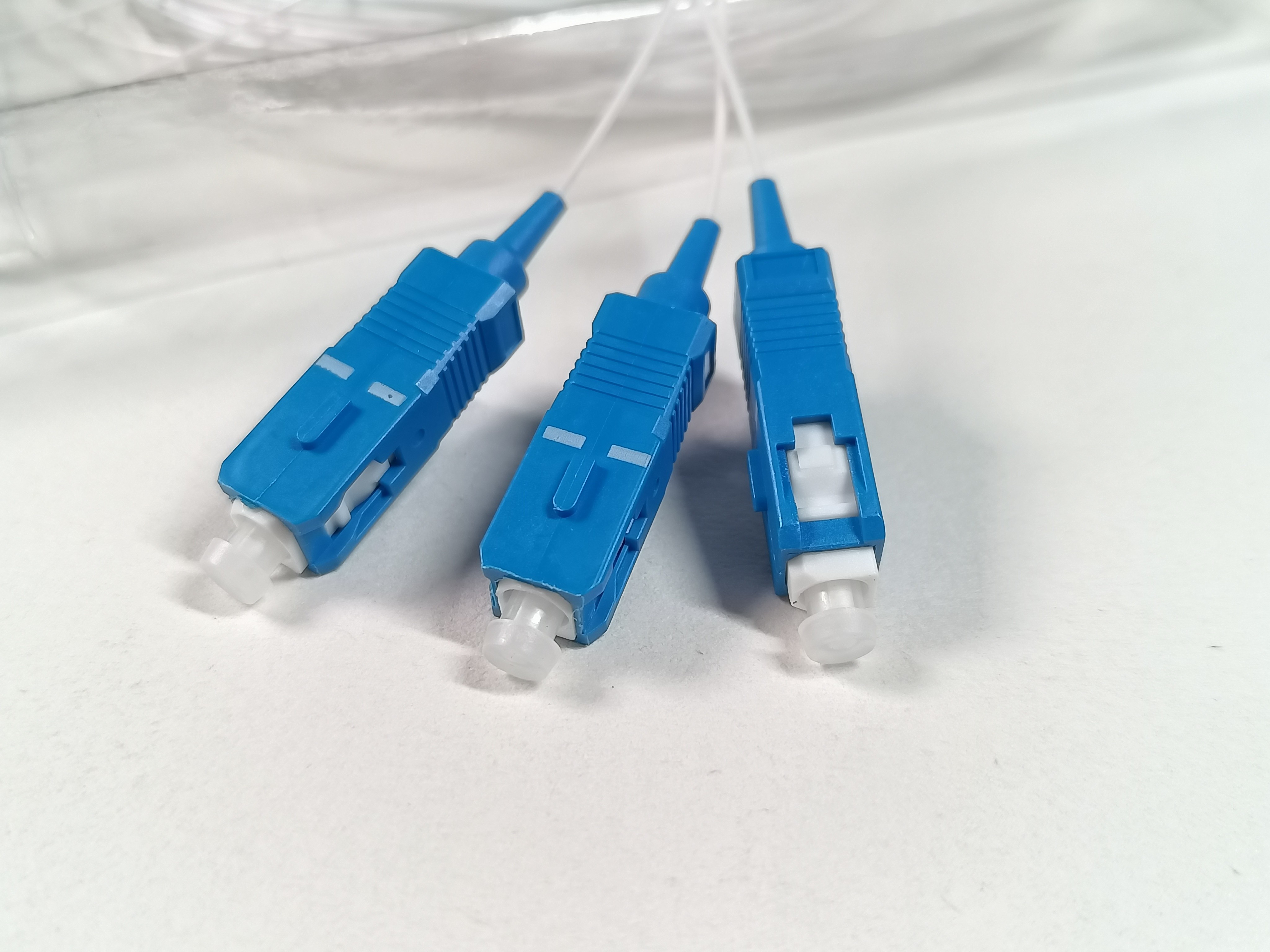

CONNECTOR : SCUPC

grade : telecom level

CABLE dia : 0.9mm

Contact Now

1x16 Mini PLC Splitter Fiber Optic SC/UPC Steel Tube 0.9mm Splitter


Description:Good uniformity and low insertion loss
 Low Polarization Dependent Loss
 Excellent Environmental Stability
 Excellent Mechanical
 Stability Telecordia GR-1221 and GR-1209
 Components through TLC-Certified, Conform to YD1117-2001

 Product Features:
 Fiber to the point (FTTX)
 Fiber to the home (FTTH)
 Passive optical networks(PON)
 Local area networks (LAN)
 Cable television (CATV)
 Test equipment

Specification
  	 			Type
 			1x2
 			1x4
 			1x8
 			1x16
 			1x32
 			1x64

 			Operating wavelength(nm)
 			1260-1650

 			Insertion loss (dB)
 			Typical
 			3.6
 			7.2
 			10.5
 			13.5
 			17
 			19.5

 			Maximum
 			4
 			7.5
 			11
 			14
 			17.2
 			21

 			Uniformity (dB)
 			Typical
 			0.4
 			0.5
 			0.6
 			1
 			1
 			2

 			Maximum
 			0.6
 			0.6
 			0.8
 			1.2
 			1.5
 			2.5

 			Polarization Dependent Loss (dB)
 			Typical
 			0.1
 			0.1
 			0.15
 			0.2
 			0.2
 			0.2

 			Maximum
 			0.15
 			0.15
 			0.25
 			0.3
 			0.3
 			0.3

 			Wavelength dependent loss (dB)
 			Typical
 			0.1
 			0.1
 			0.15
 			0.3
 			0.3
 			0.3

 			Maximum
 			0.2
 			0.3
 			0.3
 			0.5
 			0.5
 			0.5



Product Tags:

1x16 Mini PLC Splitter

Steel Tube Mini PLC Splitter

Fiber Optic Splitter 0.9mm

1x16 Mini PLC Splitter SC / UPC , Steel Tube Fiber Optic Splitter 0.9mm Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shenzhen damu technology co. LTD
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Type		1x2	1x4	1x8	1x16	1x32	1x64
Operating wavelength(nm)		1260-1650
Insertion loss (dB)	Typical	3.6	7.2	10.5	13.5	17	19.5
Insertion loss (dB)	Maximum	4	7.5	11	14	17.2	21
Uniformity (dB)	Typical	0.4	0.5	0.6	1	1	2
Uniformity (dB)	Maximum	0.6	0.6	0.8	1.2	1.5	2.5
Polarization Dependent Loss (dB)	Typical	0.1	0.1	0.15	0.2	0.2	0.2
Polarization Dependent Loss (dB)	Maximum	0.15	0.15	0.25	0.3	0.3	0.3
Wavelength dependent loss (dB)	Typical	0.1	0.1	0.15	0.3	0.3	0.3
Wavelength dependent loss (dB)	Maximum	0.2	0.3	0.3	0.5	0.5	0.5
