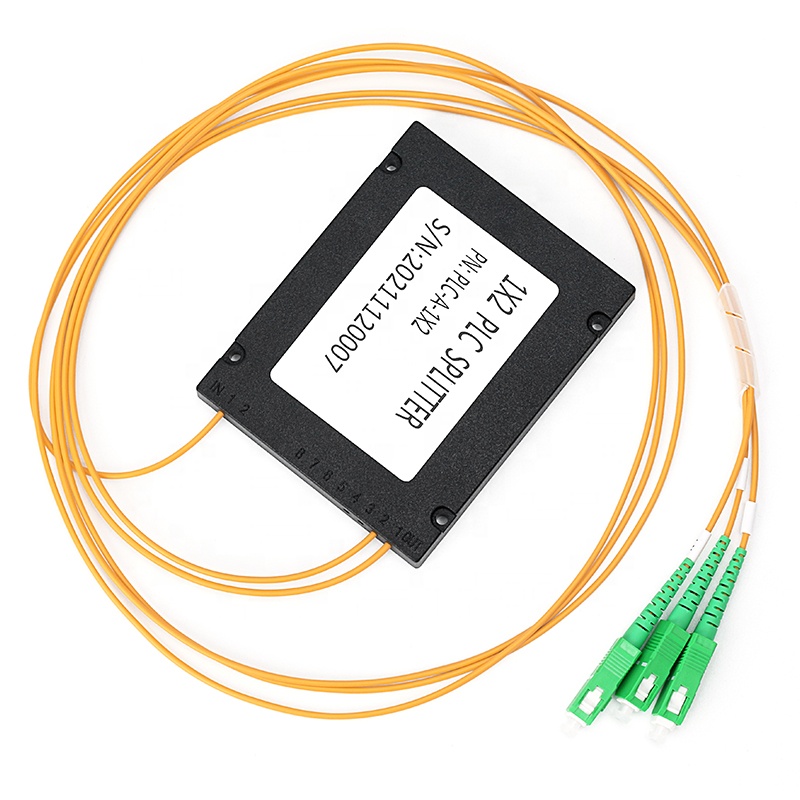

Optic SC / APC ABS Box 1x2 Fiber PLC Splitter 2.0mm Dia 1 Meter Length

Product Categories

Shenzhen damu technology co. LTD

Contact Now

Optic SC / APC ABS Box 1x2 Fiber PLC Splitter 2.0mm Dia 1 Meter Length

Name: Optic SC APC ABS Box 1x2 Fiber PLC Splitter 20mm Dia 1 Meter Length
Brand: DAMU
Price: 1 USD

Quality Optic SC / APC ABS Box 1x2 Fiber PLC Splitter 2.0mm Dia 1 Meter Length wholesale

Brand Name : DAMU

Model Number : ABS 1*2A

Certification : CE

Place of Origin : CHINA

MOQ : 2pcs

Supply Ability : 20000pcs/day

Packaging Details : blister packing,outside carton

material : ABS BOX

connector : SCAPC

fiber : G675A OR G625D

Length : 1.0m (±0.1) or customer specified

packing : blister or box

fiber dia : 2.0mm

Contact Now

Fiber Optic 1x2 SC/APC ABS Box PLC 1/2 Fiber Optic splitter 2.0mm cable 1meter 1*2

PLC Splitter is a component that splits the optical light power from one route into different routes. DAMU PLC Splitter offers premium factory controlled optical performance on a variety of connectors that enable fast, economical installation.

Planar Lightwave Circuit (PLC) ABS Box Type Splitter with SC/APC or SC/UPC Termination. Fabricated using silica optical waveguide technology to distribute optical signals accurately and evenly with minimal loss providing a low cost light distribution
solution with small form factor and high reliability.

Features

 Low insertion loss

 Low PDL

 High reliability and stability

 Good channel uniformity

Applications

 FTTH project

 CATV network

 PON network

Item	ABS 1X2 SCAPC SPLITTER
Operating Wavelength(nm)	1260-1650
Fiber Type	G657A1 or as customers' order
Connector	SC/FC/LC
Ferrule section	UPC/APC
Insertion loss(dB)	≤24.1
Loss uniformity(dB)	≤2.5
Return Loss(dB)	≥55
Polarization Dependent Loss(dB)	≤0.4
Directivity(dB)	≥55
Temperature correlation loss	≤0.5
-40～85℃(dB)	≤0.5
Size(mm)(LxWxH)	N/A
Working Temperature(℃)	-40～85
Storage Temperature(℃)	-40～85

Optic SC / APC ABS Box 1x2 Fiber PLC Splitter 2.0mm Dia 1 Meter Length

DAMU offers a variety of ABS box and cassette type splitter modules and products. PLC Splitter Modules are available in the form of either plastic module cassette (an ABS box) with ruggedized fiber jackets of 2mm and up to 3mm, or LGX metal box for plug and play splitter applications.
Customized designs are also available for customer needs, call or email us about anything you need that you don't see here. The PLC splitter family features the whole series of 1 x N and 2 x N splitter boxes and modules that are tailored for specific applications.
All splitters provide excellent optical performance and reliability that meet GR-1221-CORE and GR-1209-CORE specifications.Customized designs are also available for customer needs, call or email us about anything you need that you don't see here.
